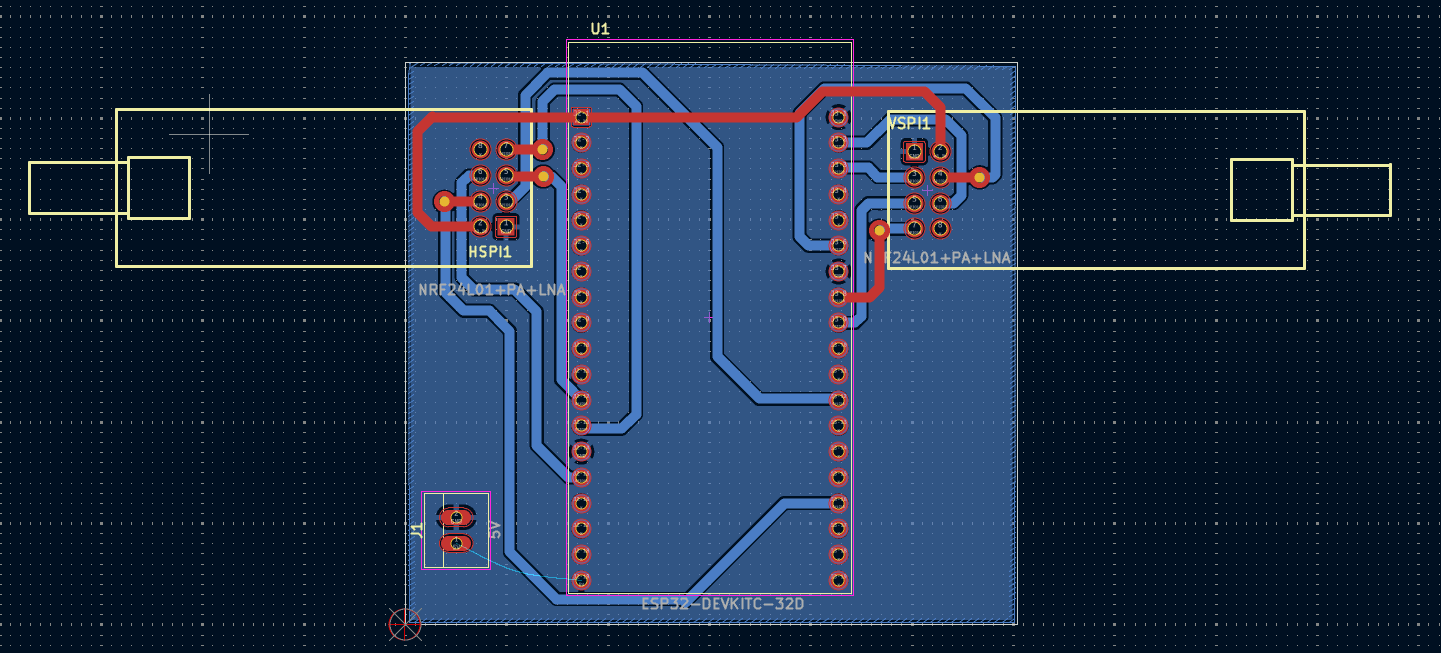

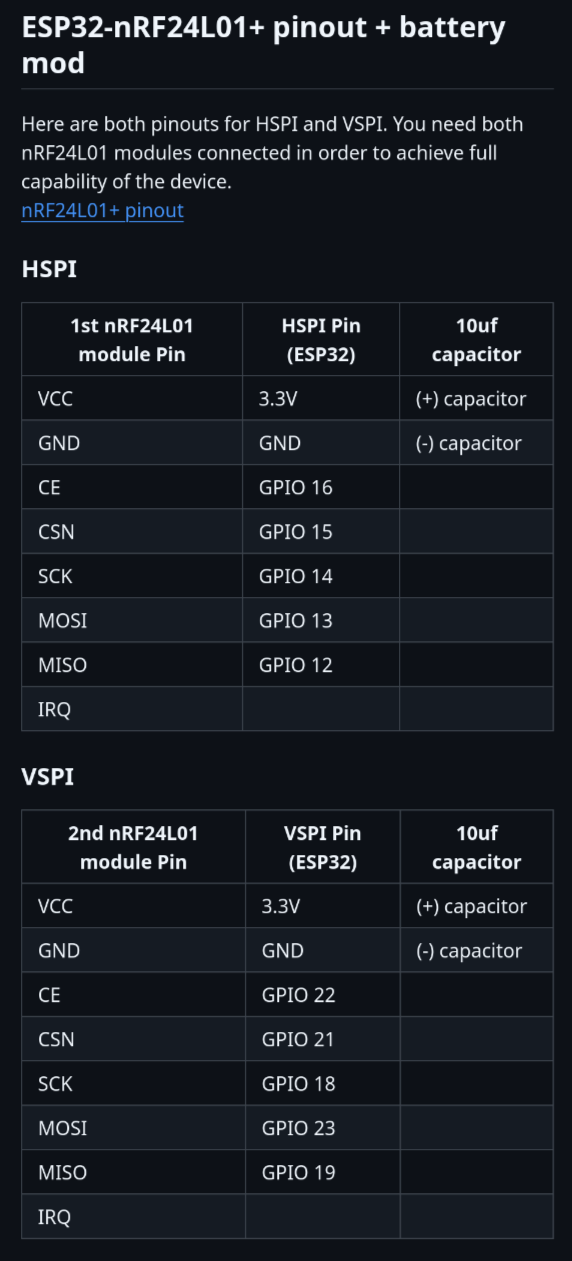

Se realiza el diseño para un esp32 de 38 pines usando Kicad. Los archivos gerber obtenidos se procesan usango el comando pc2gcode con el siguiente archivo de proyecto millproject:

# pcb2gcode configuration generated from your command (all units in mm)

metric=1
metricoutput=1

# Inputs
back=/home/brolin/Documents/BlueJammer/UnBlueJammer/Gerbers/UnBlueJammer-B_Cu.gbr
outline=/home/brolin/Documents/BlueJammer/UnBlueJammer/Gerbers/UnBlueJammer-Edge_Cuts.gbr
drill=/home/brolin/Documents/BlueJammer/UnBlueJammer/Gerbers/UnBlueJammer-PTH.drl

# Outputs
output-dir=/home/brolin/Documents/BlueJammer/UnBlueJammer/Gerbers/out
basename=UnBlueJammer

# Autolevelling (Mach3)
software=mach3
al-back=0
al-x=100mm
al-y=80mm
al-probefeed=100mm/min

# Z heights and depths
zsafe=3mm
zchange=15mm
zwork=-0.10mm
zcut=-1.80mm
zdrill=-1.80mm

# Milling (isolation)
# For straight end mills (constant diameter):
#mill-diameters=0.2mm,0.4mm

# For angle tip mills (V-bits) - effective diameter at zwork=-0.10mm:
# Formula: diameter = 2 × depth × tan(angle/2)
mill-diameters=0.035mm   # 20° V-bit at -0.10mm depth
#mill-diameters=0.115mm  # 60° V-bit at -0.10mm depth
#mill-diameters=0.083mm  # 45° V-bit at -0.10mm depth
#mill-diameters=0.054mm  # 30° V-bit at -0.10mm depth
milling-overlap=50%
isolation-width=1mm
mill-feed=100mm/min
mill-vertfeed=50mm/min
mill-speed=10000

# Outline cutting
cutter-diameter=1.0mm
cut-feed=200mm/min
cut-vertfeed=80mm/min
cut-speed=10000
cut-infeed=0.5mm

# Drilling
drill-feed=300mm/min
drill-speed=10000

• Descarga binarios para bootloader, particiones y firmware de https://github.com/EmenstaNougat/ESP32-BlueJammer/archive/refs/tags/ESP32-BlueJammer-v2.zip dentro de la carpeta Firmware_Files están los archivos
• El instalador web no funcionó (https://esp32-bluejammerflasher.pages.dev/)
• Se sube el firmware usando esptool

╰─λ # Upload with bootloader and partitions (if you have separate files)
     esptool --chip esp32 --port /dev/ttyUSB0 --baud 921600 \
           --before default_reset --after hard_reset \
           write_flash 0x1000 bootloader.bin \
           0x8000 partitions.bin \
           0x10000 firmware.bin

El firmware una vez cargado de manera exitosa arranca pero presenta errores al momento de leer los chips nRF24

• https://lastminuteengineers.com/nrf24l01-arduino-wireless-communication/
• https://grabcad.com/library/nrf24l01-pa-lna-1
• https://github.com/Steffen-W/Import-LIB-KiCad-Plugin#use-of-the-application
• https://github.com/pcb2gcode/pcb2gcode
